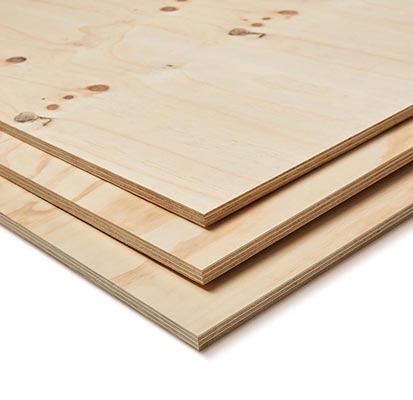

SELEX® PLYWOOD C/D

Selex® Radiata Pine Plywood panels, intended for use in construction, with high dimensional stability.
Its excellent mechanical and physical resistance to bending, shearing, and compression allows it to be used both indoors and outdoors, as part of a bracing system in a building and to provide thermal and acoustic insulation, as part of a construction system. Another differentiating element is the calibration on its faces, which guarantees its thickness tolerance.

Front

Back

Main Applications

Roofing

Structural Walls

Floor support structure

Perimeter closures

Packaging

General Specifications

Dimensions (mm)	1220 x 2440
Thickness (mm)	6.5	9	12	15	18	21	25
Thickness (Inches)	1/4”	11/32	15/32	19/32	23/32	13/16	1”
No. of layers	3	3	5	5	6/7	7	9
Density	480 - 550 kg / m³
Sanding grain	150 grit on front and 120 grit on back
Adhesive	Phenol-formaldehyde that complies with E1 emission standard
Moisture content	8% to 12%
Forestry certification	FSC® and PEFC™ certified products.

Storage Instructions

Selex® Plywood panels should be stored horizontally, on a flat surface, and in a dry and covered place, on three wooden slats.

Installation Recommendations for Construction:

Selex® Plywood must be installed leaving a gap of 3 to 4 mm in the joints between plywood sheets to absorb the dimensional variations of the wood.

Selex® Radiata Pine Plywood panels follow the highest standards of responsible forest management, thus ensuring that all raw material used comes from FSC® certified forests and other controlled sources.
